 MkvBatcher Free



The free version of MkvBatcher has the full set of functions and two engines.

The examples below show some possible configurations.

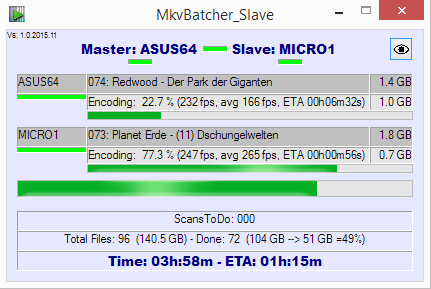

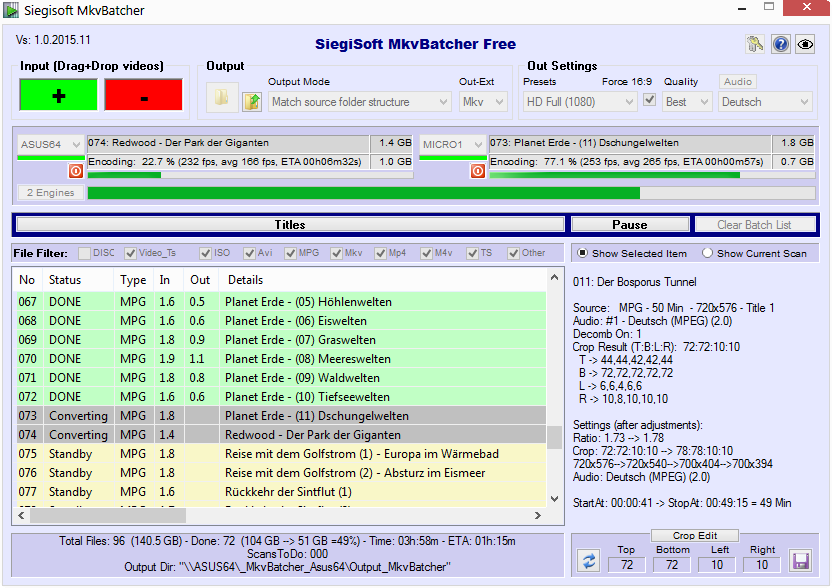

 Screenshots: MkvBatcher Free in operation

Configuration examples for MkvBatcher Free

  Basic Performance Reference: 160 Dvd-ISOs/day = 100%


  One computer with one conversion engine

A conversion batcher normally only does one conversion at a time (=100%). Two parallel conversions give a performance boost of about 25% because the full CPU power is used (see example 1).

Running the second engine of MkvBatcher Free on a second computer doubles the output performance (example 2).


  Basic Batcher



  Example 1                                                    200 Dvd-ISOs/day = 125%


  •

One computer with two conversion engines


    1 Computer
    Two parallel conversions on one computer give a performance boost of about 25% because the full CPU power is used.

Setup details here: "basic setup"


      MkvBatcher

      Master

  Example 2                                                    320 Dvd-ISOs/day = 200%


  •

Two computers with one conversion engine each






    2 Computers


    Like example 1 but  running the second engine of MkvBatcher Free on a second computer to double the performance.

Setup details here: "advanced setup"


      MkvBatcher Slave

      Master   Slave over LAN

  Example 3                                                             200 Dvd-ISOs / day


  •

Use your laptop as a remote monitor for the progress






    1 Computer + 1 Laptop


    This example shows MkvBatcher running on your main computer and a MkvBatcher_Slave.exe running just as a monitor on a laptop.

As long as you do not assign a conversion engine to that laptop, wireless for the laptop is no problem. Just make sure, that no source or target directories of the session are on the laptop (wireless bandwidth). Setup details here: "advanced setup"


      MkvBatcher Slave
        No engine, just monitor the progress
      Master   Slave over LAN

  Example 4                                                             200 Dvd-ISOs / day


  •

Laptop as "remote control" + 1 conversion slave with 2 engines






    1 Laptop + 1 Computer



Here the master runs on a laptop with no engine assigned to it and MkvBatcher_Slave runs with both engines on the main computer.

Basically like a remote control for your conversion session. But do make sure, that no source or target directories of the session are on the laptop (wireless bandwidth).
Setup details here: "advanced setup"

      MkvBatcher Slave

      Master   Slave over LAN

  Example 5                                                             320 Dvd-ISOs / day


  •

Laptop as "remote control" + 2 conversion slaves with one engine each






    1 Laptop + 2 Computers

    Like example 4 but  running the second engine of MkvBatcher Free on a second computer to double the output.

Setup details here: "advanced setup"


      MkvBatcher Slave 1 Slave 2

      Master   Slave(s) over LAN ...



Note: This configuration requires the Pro Version     360 Dvd-ISOs / day

                  Pro
  •

MkvBatcher Pro with 3 Engines on 2 Computers







Modern Laptop + Desktop
Some of the latest generation mobile devices are amazingly powerful and quite able to do serious work. Even some high end pads and convertibles with i5 or i7 play today in that league. However, I whould still only assign one engine to it to leave it with some headroom.
Mobile/Work Hardware Example
Master Slave
Screenshots and more details about MkvBatcher Pro here.
Setup details here: "advanced setup"

MkvBatcher Pro is free while in beta!
       Wired LAN


      MkvBatcher Slave 1

      Master   Slave over LAN
